Cleaning process

Keeping heat exchangers and specific parts clean is of great importance in order to maintain quality and extend the service life.

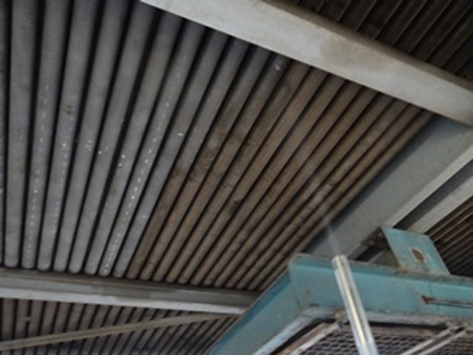

The cleaning process is a non-destructive method for dry online cleaning specially adapted for induced and forced draft Air-Cooled Heat Exchangers.

We propel sodium bicarbonate (baking soda) with compressed air through a blasting unit equipped with a special blast nozzle.

Read all about our cleaning process.







Services
GvR2017Bronswerk_MG_4486 (1) (2)

Which blasting material is used?

The blasting material used consists of formulated sodium bicarbonate (also known as baking soda) with a crystalline structure that looks like granulated sugar to the naked eye  in contrast to the conventional powdery baking soda. The cleaning process is an extremely friable material that  microfragments on impact, literally exploding surface materials without damaging the substrate. The unique properties of baking soda allow it to remove dust, grease, oil, soot, pollen and other contaminants without damaging the thin metal sheet of the fins of the air-cooled heat exchanger tube. There are no other blasting media with the same characteristics.

The cleaning process is mainly used to clean ‘critical’ air-cooled heat exchangers and allows these facilities to recover close to design values running characteristics.

This cleaning method has safety benefits. Nobody has to enter the plenum chamber anymore. That means no risk of accidents due to heat stress or running fans. In addition, this method does not make use of a high pressure application. And no  liquid waste treatment is required.

Besides the safety benefits, there is the great advantage that the cleaning can take place during operation, so there is no production loss.

Results of online dry cleaning

Our team of cleaning specialists is fully trained to carry out performance measurements (airflow & ΔP airside) before and after cleaning. As a result, we are always able to show and demonstrate the superiority of our cleaning method to conventional or similar cleaning methods. After cleaning we always submit a full cleaning report with receipt documents to the end user.

More information? Please contact Bronswerk Services by phone

+31 33 24 72 500

or send an email to services@bronswerk.com
